3 Inch 5 Inch 6 Inch Diesel Water Pump Irrigation Water Pump Agricultural Irrigation Diesel Water Pump

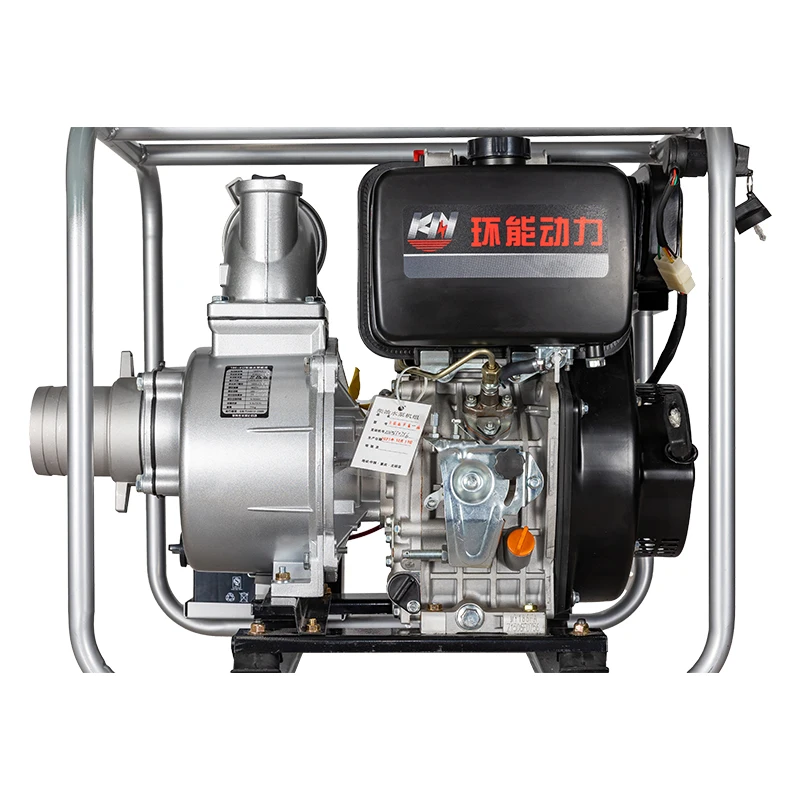

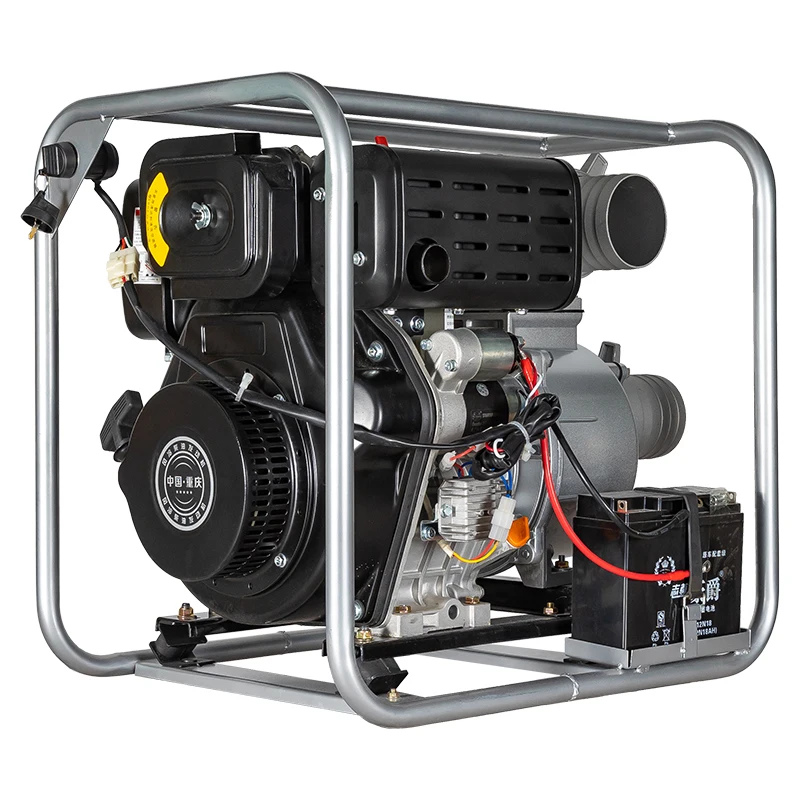

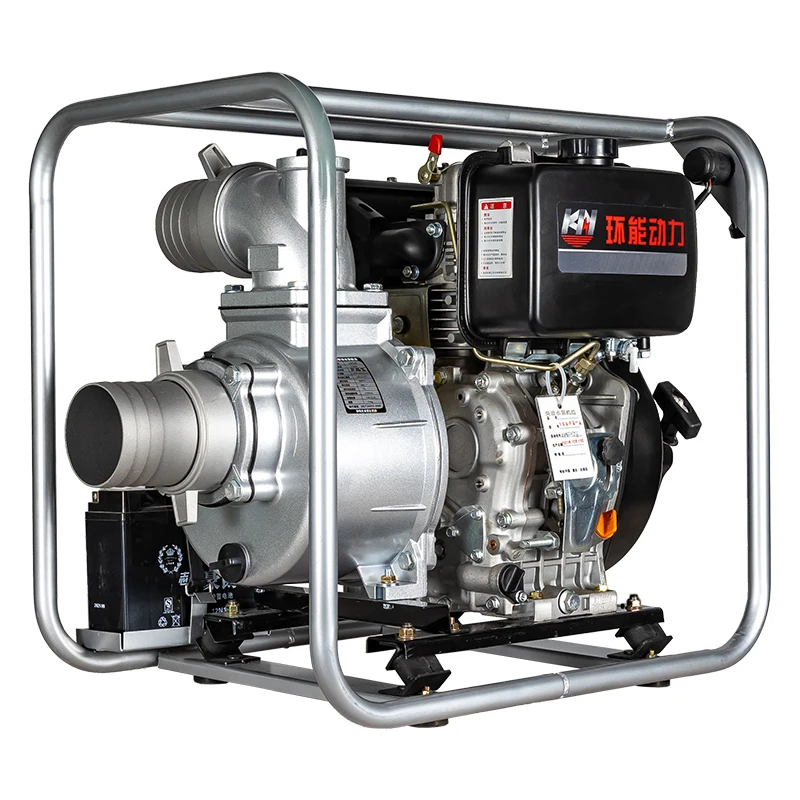

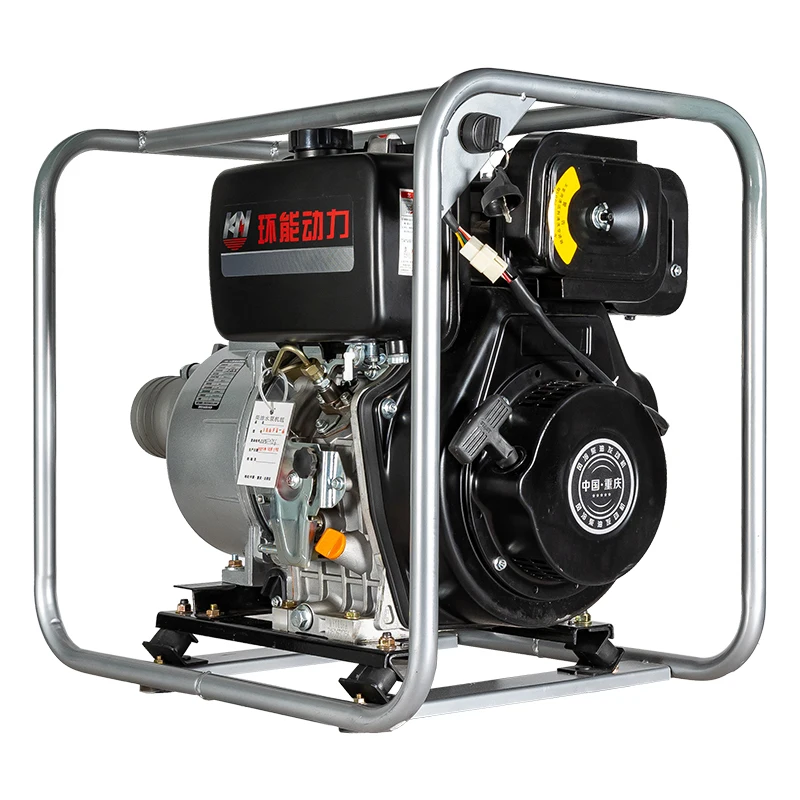

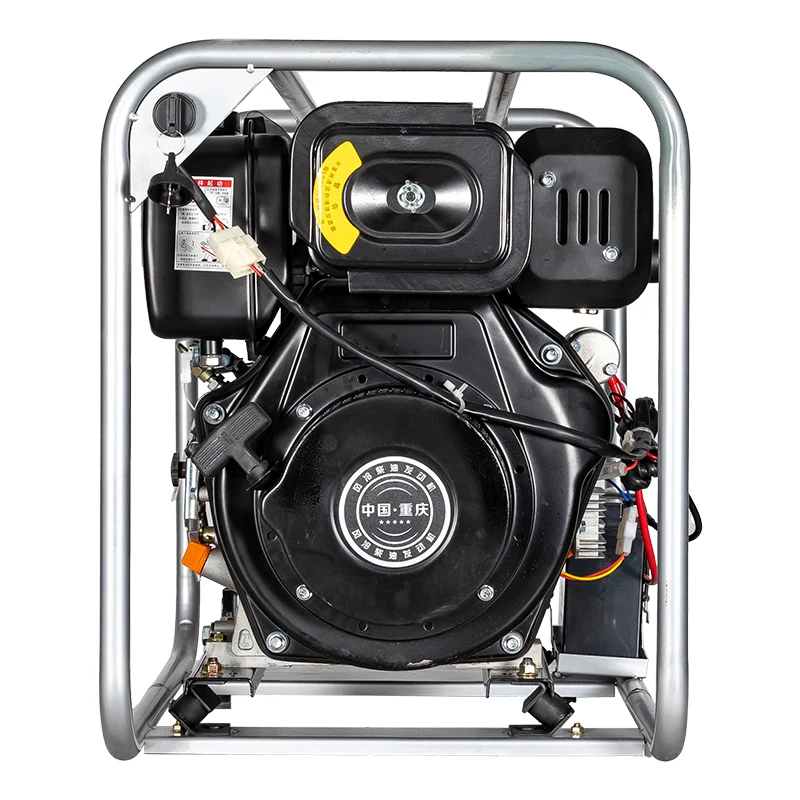

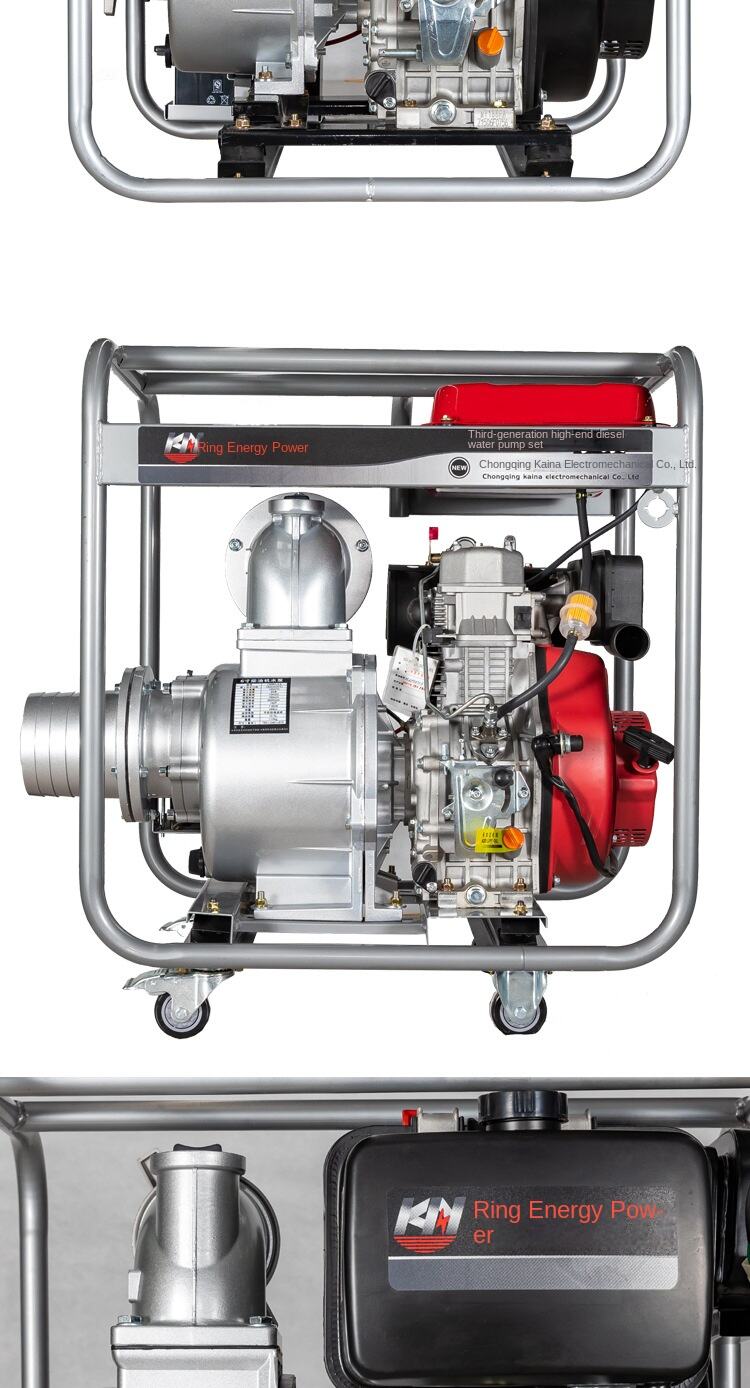

The Kena 3 Inch, 5 Inch and 6 Inch Diesel Water Pumps are built to meet the real needs of farm work, irrigation and water transfer. These pumps bring strong, steady flow and reliable power where electricity is not available or not practical. Each model is designed around a durable diesel engine linked to a robust pump body, giving long service life and steady performance for daily use in fields, orchards, construction sites and emergency water work.

These pumps are easy to move and set up. Simple inlet and outlet sizes—3 inch, 5 inch and 6 inch—match common hoses and fittings so you can connect quickly. The Kena diesel engine starts easily and runs steadily, giving strong suction and high flow. That makes it fast to fill irrigation channels, move water from rivers or ponds, drain flooded areas and supply water to remote fields.

Built for heavy use, the pump housings are made from tough metal that resists wear and rust. Internal parts are made to handle sand and small debris that often come with river or pond water. Filters and easy access covers help keep the pump clean and make routine maintenance simple. You can change oil, check the fuel and clear the filter without special tools, so downtime is low and the pump keeps working through the season.

Fuel efficiency and power balance are key features. The Kena diesel engines give good running time on a tank of fuel and strong torque for pushing large volumes of water. That means fewer stops for refueling and more work done in each day. Safety features like stable mounting feet, splash guards and secure fuel caps help protect users and equipment during operation.

These pumps are versatile. Use them for sprinkler systems, drip irrigation supply, field leveling, livestock watering and construction site dewatering. Portable frames and lifting points make it easier to move the pump between jobs. Spare parts are commonly available, and the simple design means repairs are quick and cost-effective.

Choosing a Kena diesel water pump gives you a practical tool that is made for hard work. With clear inlet and outlet sizes, simple service points, and a focus on steady performance, the 3 Inch, 5 Inch and 6 Inch models are a smart choice for growers, contractors and anyone needing a reliable, low-care water pump for agricultural irrigation and general water moving tasks

• Own Factory with R&D, Support OEM&ODM
• Scientific Management, Sophisticated Technology, Continuous Innovation
• Premium Quality with CE, ISO Certificates
• Fast Shipping, 5-7 Days for Stock Items

Why choose us

1. Semi-nylon camshaft not only ensures the wear resistance of the CAM but also reduces the engine noise;

2. The use of Japanese technology carburetor fuel saving, easy to start, the correct use of the method to ensure that 1 time can start;

3. The pump pump body performance is stable, the vertical height of the suction can ensure 7 meters, and the reasonable strength of the pump body structure is high, and the pump body cracking and other problems will not occur when the pump is used in high strength;

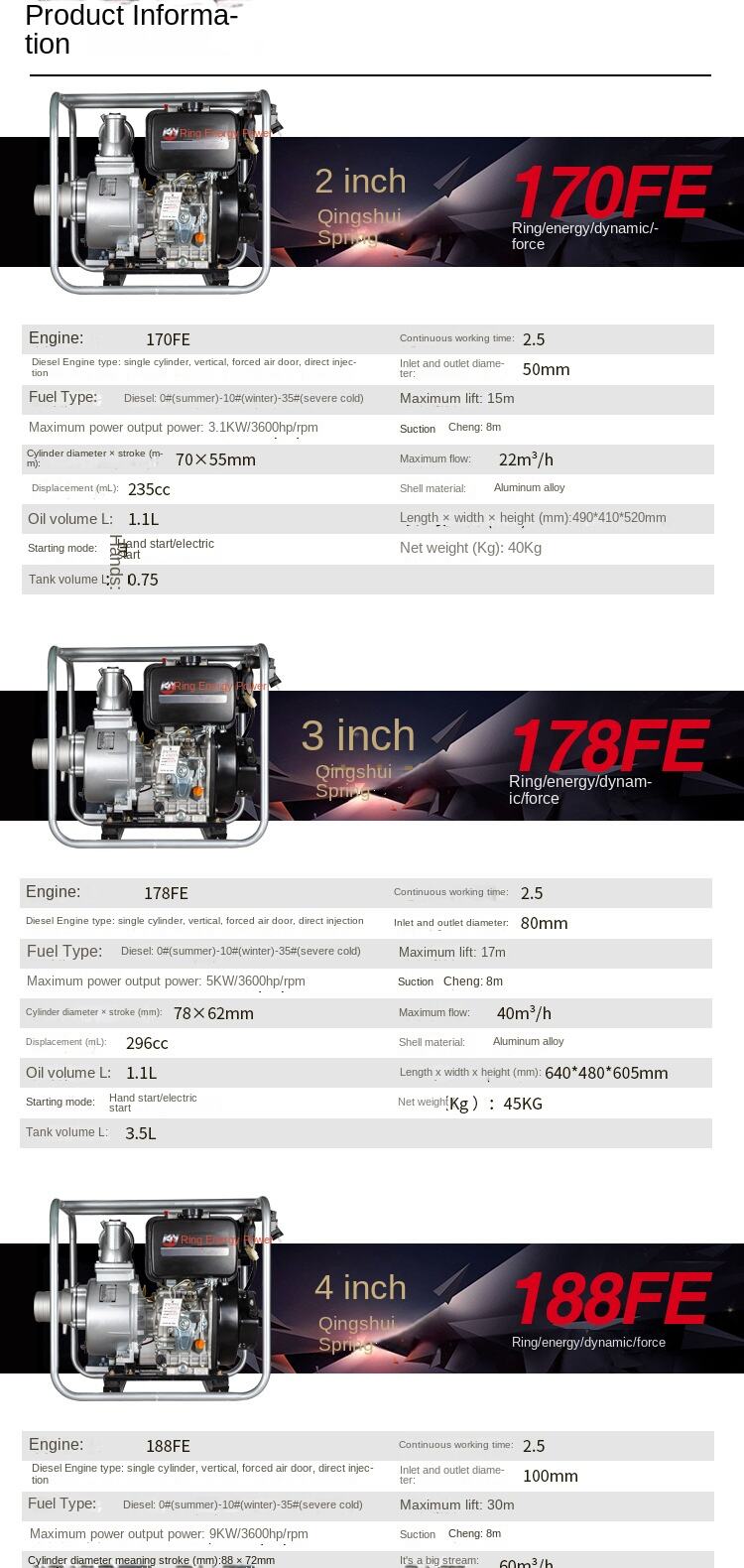

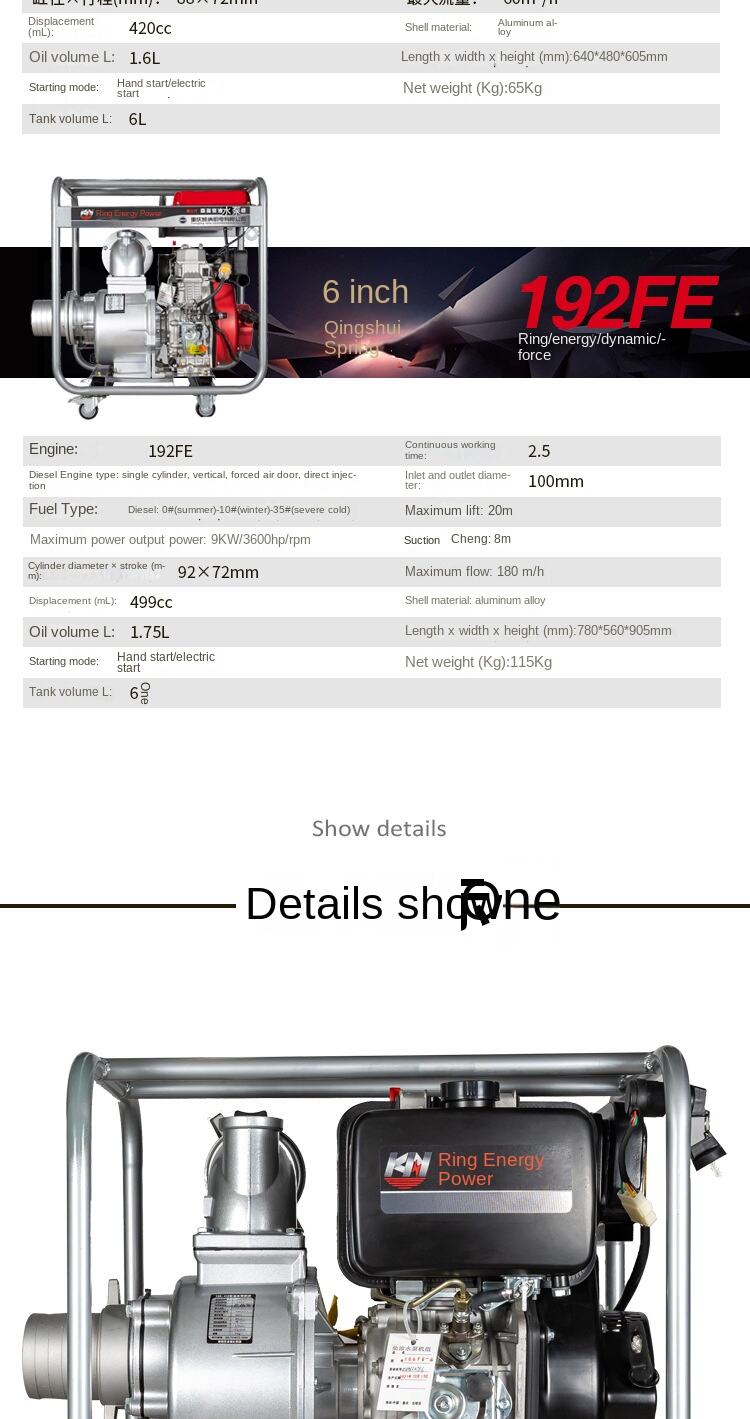

Model Parameters	CGZ50-15	CGZ80-20	CGZ80-25	CGZ100-30	CGZ150-20
Engine	168FE	173FE	178FE	186FE	192FE
Diesel Engine Type	Single cylinder, vertical, forced damper, direct injection	Single cylinder, vertical, forced damper, direct injection	Single cylinder, vertical, forced damper, direct injection	Single cylinder, vertical, forced damper, direct injection	Single cylinder, vertical, forced damper, direct injection
Fuel Type	Diesel: 0#(summer)-10#(winter)-35#severe cold	Diesel: 0#(summer)-10#(winter)-35#severe cold	Diesel: 0#(summer)-10#(winter)-35#severe cold	Diesel: 0#(summer)-10#(winter)-35#(severe cold	Diesel: 0#(summer)-10#(winter)-35#severe cold
Maximum Power Output Power	3.1KW/3600hp/rpm	4KW/3600hp/rpm	5KW/3600hp/rpm	9KW/3600hp/rpm	9KW/3600hp/rpm
Bore x Stroke (mm)	68×55mm	73×62mm	78×62mm	86×72mm	92×75mm
Displacement (mL)	235cc	255cc	296cc	420cc	499cc
Oil Volume L	1.1L	1.1L	1.1L	1.6L	1.75L
Starting Method	Hand start/electric start	Hand start/electric start	Hand start/electric start	Hand start/electric start	Hand start/electric start
Tank Volume L	4L	3.5L	3.5L	6L	6L
Continuous Working Time	2.5	2.5	2.5	2.5	2.5
Inlet and Outlet Diameter	50mm	80mm	80mm	100mm	150mm
Maximum Head	15M	20M	25M	30M	20M
Suction Lift	8M	8M	8M	8M	8M
Maximum Flow	22m³/h	40m³/h	45m³/h	60m³/h	150m³/h
Shell Material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Length×Width×Height (mm)	490*410*520mm	640*480*605mm	640*480*605mm	640*480*605mm	780*560*905mm
Net Weight (Kg)	35KG	45KG	48KG	65KG	115KG
Suction Lift	6M	6M	6M	7M	7M
Maximum Flow	40 cubic/h	55 cubic meters	80 cubic	150 cubic meters	270 cubic meters
Shell Material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
L×W×H (mm)	490*400*410	490*400*410	570*430*500	690*510*550	1000*700*850
Net Weight (Kg)	25KG	30KG	40KG	55KG	130KG
